AbrasiMet® M Manual Abrasive Cutter
AbrasiMet M
Manual Abrasive Sectioning Machine
AbrasiMet M benefits
- Large motor for cutting through any sample
- Bright chamber lights and large window
- Quick locking nut for tool-less blade change
- Dual cut accessory for acheiving 2 cuts at once
- Various vise table positions for compatibility with any 12mm vise
- Adjustable cutting handle for best ergonomics
- 6 coolant nozzles for fast cooling
- Motor speed variation based on blade size for optimal rotation speed
- High cutting handle feedback allows users to quickly adjust cut force
- Enclosed Motor to keep coolant and debris out
- Filtering recirculation system to decrease cleaning time
- High flow manual cleaning nozzle

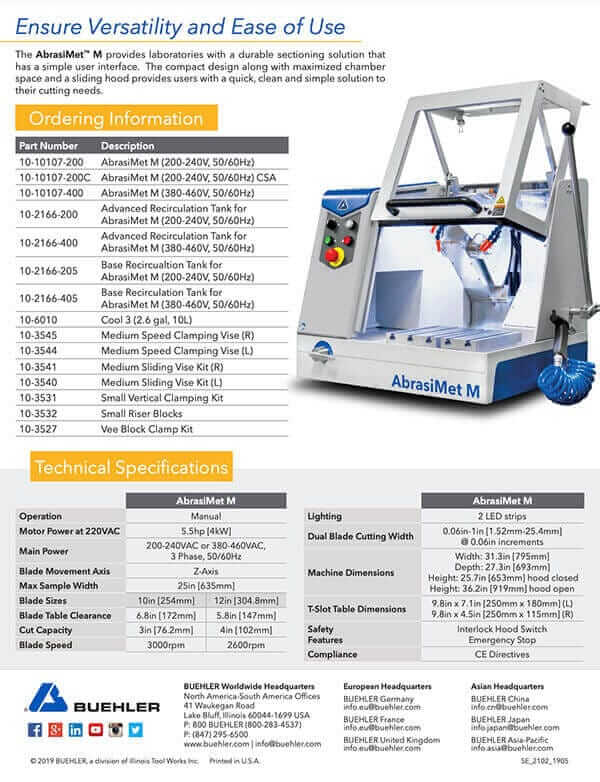

Ordering
AbrasiMet M - Ordering | |||
---|---|---|---|
Part Number | Voltage | Request a Quote | |
10-10107-200 | 200 - 240VAC, 50-60Hz | Request a Quote | |
10-10107-400 | 380 - 460VAC, 50-60Hz | Request a Quote | |
10-10107-200 | CSA 200-240VAC, 50-60Hz | Request a Quote |
Specifications
AbrasiMet M | |||
---|---|---|---|
Motor Power at 220VAC | 5.5hp[4kW] | ||
Main Power |
200-240VAC or 380-460VAC 3 Phase, 50/60Hz |
||
Blade Movement Axis | Z-Axis | ||
Max Sample Width | 25in[635mm] | ||
Blade Sizes | 10in[254mm] | 12in[304mm] | ||
Blade Table Clearance | 6.8in[172mm] | 5.8in[147mm] | ||
Cut Capacity | 4.3in[109mm] | ||
Blade Speed | 3000rpm | 2600rpm | ||
Lighting | 2 LED strips | ||
Dual Blade Cutting Width |
0.06in-1in[1.52mm-25.4mm] @.6in increments |
||
Machine Dimensions |
Width: 31.1in[791mm] Depth: 27.3in[694mm] Height: 25.7in[653mm] hood closed Height: 36.2in[919mm] hood open |
||
T-Slot Table Dimensions |
9.8in x 7.1in[250mm x 180mm](L) 9.8in x 4.5in[250mm x 115mm](R) |
||
Safety Features | Interlock Hood Switch, Emergency Stop | ||
Compliance | CE Directives |
