Support Clips Additives and Mixing Cups for Mounting

Make your Mounting Process Easier and More Efficient

Support Clips Additives and Mixing Cups

Explore our sample support clips, available for both hot and cold mounting processes, to keep your sample in the correct orientation. Also view our additives, like conductive filler and pigments, as well as our mounting wax for affixing samples to glass slides.

Consistent Specimen Alignment

Use SamplKlips, UniClips, and Specimen Support Clips for precise placement of the specimen in the mount to ensure the area of interest is properly presented for grinding and polishing.

Unique Mounting Applications

Choose from a variety of colored pigments and fillers to customize your mounting processes.

Support Clips

SamplKlip

Stainless Steel support clip for use with all mounting systems.

SamplKlip I

Plastic support clip best for castable mounting systems.

Specimen Support Clip


Plastic support clip best for castable mounting systems.

UniClip Support Clip

Plastic support clip for use with all mounting systems.

Additives

Pigments

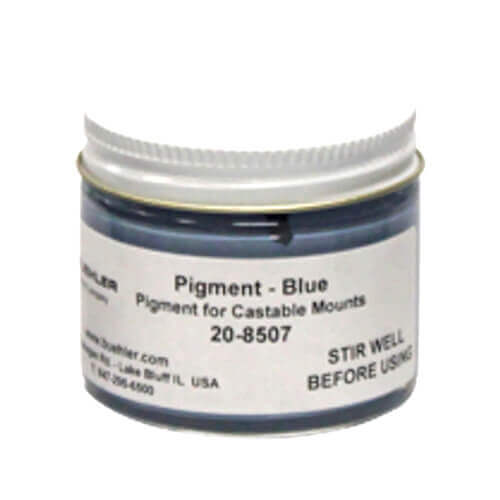

208507 Blue Pigment 15oz 3ml
Use with castable resins for color coding or creating contrast.

Conductive Filler

Add nickel based conductive filler to epoxies or acrylics to make mounts conductive for SEM, EDS, or WDS.

Flat Edge Filler

Add ceramic powder to enhance edge retention in castable mounting systems by increasing hardness of mount.

Thermoplastic Cement

408100 Thermoplastic Cement
Use for adhering samples to glass slides or other specialty holders.

Crystalbond Mounting wax

Use for adhering samples to glass slides or other specialty holders.

Mixing Cups

Plastic Mixing Cup

Graduated plastic mixing cup for mixing castable mounting systems.

Paper Mixing Cup

208177100 Paper Plain Cups 5oz
Non graduated paper mixing cup for mixing castable mounting systems.

Stirring Sticks

For stirring castable mounting systems.
Ordering
Support Clips, Additives and Mixing Cups
SamplKlip (Qty 100)
Stainless Steel support clip for use with all mounting systems *
Part Number Size
20-4000-100 0.25H x 0.550W x 0.350in L [6 x 14 x 9mm] 0.575g
* Compatible with specimens up to 0.200in [5mm] thick
SamplKlip I (Qty 100)
Plastic support clip best for castable mounting systems *
Part Number Size
20-4100-100 0.25H x 0.475W x 0.3in L [~6 x 12 x 8mm] 0.230g
20-4100-100S 0.25H x 0.425W x 0.25in L [~6 x 11 x 6mm] 0.230g
* Compatible with specimens up to 0.200in [5mm] thick
Specimen Support Clip (Qty 1000)
Plastic support clip best for castable mount systems •
Part Number Size
20-4001-000 0.25H x 0.290W x 0.375in L [6 x 7 x 9.5mm] 0.145g
• Compatible with specimens between 0.0035 – 0.090in [0.9 – 2.3mm]
UniClip Support Clip (Qty100)
Plastic support clip for use with all mounting systems
Part Number Size
20-5100-100 (Clear) 0.4 H x 0.360 W x 0.500in L [10 x 9 x 13mm] 0.290g
113043 (Black) 0.4 H x 0.360 W x 0.500in L [10 x 9 x 13mm] 0.290g
Mounting Consumables & Accessories
Pigments
Use with castable resins for color coding or creating contrast
Part Number Color Size
20-8505 Black 1.5oz [45mL]
20-8506 Red 1.5oz [45mL]
20-8507 Blue 1.5oz [45mL]
Conductive Filler
Nickel filler makes castable mounting systems conductive
Part Number Size
20-8500 2 lb [0.9kg]
Flat Edge Filler
Ceramic Powder enhances edge retention in castable mounting systems by increasing
Part Number Size
20-8196 1 lb [0.45kg]
Thermoplastic Cement (Qty 12)
For adhering samples to glass slides or other specialty holders
Part Number Description
40-8100 Use at 266° F [130°C]
Crystalbond Mounting Wax
For adhering samples to glass slides or other specialty holders
Part Number Description
40-8150 Use at 257°F [125°C]
20-8145 Use at 127°F[53°C]
Plastic Mixing Cup (Qty 100)
Graduated Plastic Mixing cup for mixing castable mounting systems
Part Number Size
20-8176-100 8.5oz [250mL]
Paper Mixing Cup (Qty 100)
Non Graduated Paper Mixing cup for mixing castable mounting systems
Part Number Size
20-8178-100 8oz [236mL]
Stirring Sticks
For stirring castable mounting systems
Part Number QTY
20-8175 1000
Related Consumables
Product Literature
Frequently Asked Questions
How much conductive filler do I need to use?
Add more or less conductive filler to meet your conductivity needs. A general recommendation is to use 1.5 – 2 times the weight of the mounting media (for epoxies) and/or volume (for acrylics).
Adding conductive filler to a given media reduces shrinkage, extends cure times, and increases viscosity.
