Nikon SMZ18 Stereo Zoom Microscope
Nikon SMZ18
Zoom Stereo Microscope
Perfect for large sample analysis and multi-focal imaging, Nikon SMZ18 stereo Zoom microscope feature large zoom ratios with high resolution and macro magnification of parts. Enjoy enhanced capabilities for creating high-resolution, high-contrast, and high zoom ratio images suitable for electronics and other 3D parts.
This system offers:
- Manual zoom with a wide zoom range and click stops at various intervals
- Magnification range of 3.75 – 270x with 10x eyepieces (subject to objective and camera adapter selection)

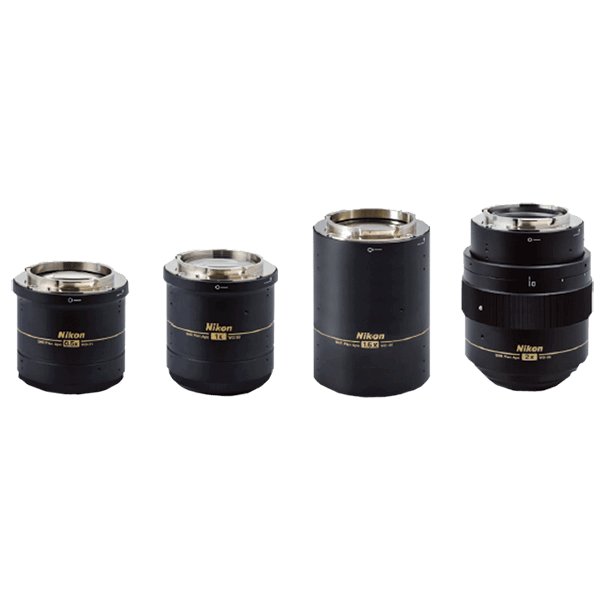

- A double nosepiece accessory facilitating on-axis viewing, extended depth of focus, and swift rotation between multiple objectives
- Trinocular body tubes provide built-in access for camera adapter, camera, and seamless integration with OmniMet®
| SMZ feature comparisons table | ||
|---|---|---|
| SMZ800N | SMZ18 | |
| Optical System | Parallel-optics tyle | |
| Zoom Ratio | 8:1 | 18:1 |
| Zoom Range | 1-8x | 0.75-13.5x |
| Working Distance | 78mm | 60mm |
OmniMet® Imaging & Analysis Software
Point-and-click Measurements
- Make simple to complex measurements with intuitive menu options
- Reduce steps with application specific Modules and Scripts
- Comply to national standards with the click of a button
Automated Imaging Analysis
- Create or run pre-programmed Scripts to eliminate repetitive steps
- Improve quality control by following the same process each time
- Export data to Word or Excel automatically
Flexible Modular System
- Choose from a variety of Modules and Scripts to customize according to application
- Choose level of automation with six different Editions
- Upgrade functionality from one Edition to another at any time
Seamless Integration
- Connect to a multitude of cameras, microscopes, and motorized stages
- Calibrate captured images to equipment magnification
- Purchase as a system for a turnkey solution
Ordering
| Nikon SMZ18 Ordering | ||
|---|---|---|
| Part Number | Configuration | Request a Quote |
| 8742-01 | Nikon SMZ18 with 1x Objective - on plain base with 105mm of Z travel, 50/50 trinocular body tube with camera port (requires camera adapter), 10x eyepieces, 1x objective, LED illuminator, fiber optic ringlight, ¼ Lambda plate, and dust cover | Request a Quote |
