IsoMet® High Speed Pro

IsoMet High Speed Pro

Automatic Precision Sectioning Machine

The IsoMet High Speed Pro automatic precision saw is a versatile, 8in [203mm] tabletop cutter, perfect for achieving both speed and precision in your cutting process. Engineered with advanced features, this machine offers user-friendly operation while delivering the exceptional surface quality essential to your workflow. Pair with Buehler’s diamond / CBN blades and Cool 3 coolant for a comprehensive solution with unmatched quality.

IsoMet High Speed Pro Benefits

Unparalleled Precision and Quality
  • Precise feed rate, cut length and positioning measurements to get the exact cut you need
  • Automatic dressing ensures a clean blade and consistently high quality
  • Stored methods ensure sample-to-sample consistency
  • SmartCut prevents overloading the cutting force on the part
Speed in Cutting and Setup
  • Powerful 2.7hp [2kW] motor enables fast cutting
  • Rapid Rail system makes vising setup lightning fast
  • Abrasive vising table can be quickly swapped in for larger samples
  • Streamline your workflow with stored methods to set your ideal parameters with a single button
Intuitive Control at Your Fingertips
  • 3 axis control using joysticks
  • Easy to use touchscreen with advanced programming capabilities
  • High range of movement makes setup easy

Ordering

IsoMet High Speed Pro - Ordering
Part Number Voltage Request a Quote
11-2800 100 - 240VAC, 50-60Hz Request a Quote

Specifications

IsoMet High Speed Pro
Cut Operation Automatic, Manual, or SmartCut control Linear Blade Feed
Units English and Metric
Blade Movement Axis Horizontal and Linear (X, Y, Z)
Display 6.5in LCD Display with LED Backlighting
Controls Touch Screen; Precision Controllers
Lighting 2 LED Strip Adjustable brightness
Programming Retains Last Settings Serial Sectioning
Laser Optional Green Laser
Blade Position Settings Horizontal: 0 – 2in [0 – 50mm]
Cut Length Range .01 – 7.25in [1mm – 184mm]
Cut Length Increment 0.01in [.25mm]
Feed Rate Range .04 – 1in/min [1.2 – 25.4mm/min]
Feed Rate Increment 0.01in increments [1mm increments]
Blade Speed 1000-5000rpm
Cut Capacity (Diameter) 2.8in [71mm]
Coolant Systems Built-in Recirculating System, 1gal [4L]
Flow Rate Wash Down Hose 2L/min
Flow Rate on Blade 2.5L/min
Wafering Blade Diameters 3 – 8in [76 – 203mm]
Abrasive Blade Diameters 5 – 8in [127 – 200mm]
Cut Chamber Size 9in x 20in [228mm x 508mm]
Machine Dimensions Width: 24in [610mm]
Depth: 30in [762mm]
Height (Hood Opened): 36in [915mm]
Height (Hood Closed): 19in [483mm]
Weight 157Lbs[71.2kg]
Electrical
Motor Power at 220VAC 2.68Hp [2kW]
Main Power 100 – 240VAC, 50-60Hz, 1 Phase
Noise Level 58dB
Safety Features Interlock Hood Switch, Emergency Stop
Compliance CE Directives
Consumables and Accessories

Blades for Precision saws and cutters

Vising for Precision saws and cutters

Coolants for Sectioning Machines

Flanges for Precision Machines

Related Products
7in [178mm]
Gravity-fed Precision Saw

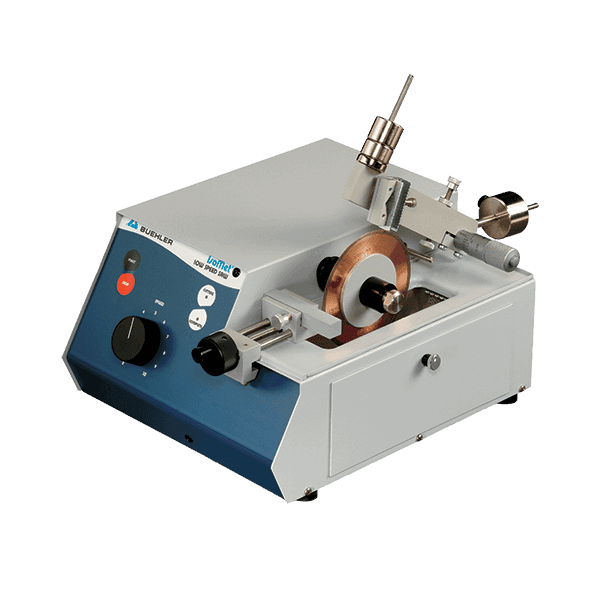

5in [127mm]
