Nikon SMZ800N Zoom Stereo Microscope

Nikon SMZ800N

Zoom Stereo Microscope

The Nikon SMZ800N is a versatile stereo microscope offering excellent optical performance with high-magnification, high-zoom ratio, and high-resolution images for advanced operations.

Ideal for failure analysis studies.

  • High resolution and magnification ideal for weld analysis and macro imaging
  • Zoom range (with 1/2/3/4/6/8x click stops)
  • 5x – 160x magnification range with 10x eyepieces (dependent upon objective and camera adapter selection)
  • LED fiber illumination is available with epi coaxial, ring light and flexible light pipe options for a variety of applications
  • Double nosepiece accessory enables on-axis viewing, extended depth of focus, and quick rotation between multiple objectives
  • Trinocular body tubes enables built-in access for camera adapter, camera, and OmniMet® integration
SMZ feature comparisons table
SMZ800N SMZ18
Optical System Parallel-optics tyle
Zoom Ratio 8:1 18:1
Zoom Range 1-8x 0.75-13.5x
Working Distance 78mm 60mm
Nikon Authorized Dealer

OmniMet® Imaging & Analysis Software

The OmniMet system integrates microscopes, cameras, and image analysis software via an intuitive interface. Easily view and analyze images from your microscope, or import them into OmniMet for precise analysis. With flexible functionality and analytical power, OmniMet meets diverse metrology needs for image data archiving and quantitative analysis.
OmniMet Modular Imaging System

Point-and-click Measurements

  • Make simple to complex measurements with intuitive menu options
  • Reduce steps with application specific Modules and Scripts
  • Comply to national standards with the click of a button

Automated Imaging Analysis

  • Create or run pre-programmed Scripts to eliminate repetitive steps
  • Improve quality control by following the same process each time
  • Export data to Word or Excel automatically

Flexible Modular System

  • Choose from a variety of Modules and Scripts to customize according to application
  • Choose level of automation with six different Editions
  • Upgrade functionality from one Edition to another at any time

Seamless Integration

  • Connect to a multitude of cameras, microscopes, and motorized stages
  • Calibrate captured images to equipment magnification
  • Purchase as a system for a turnkey solution

Ordering

Nikon SMZ800N Ordering
Part Number Configuration Request a Quote

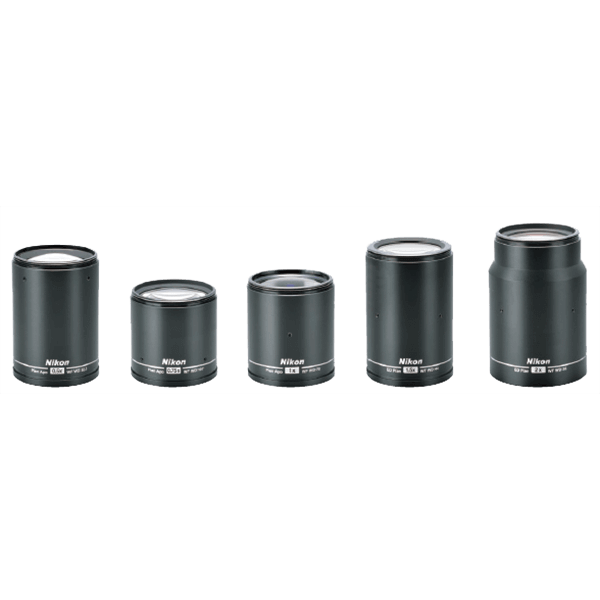

8741-01 Nikon SMZ800N with 1x Objective - on plain stand with 50/50 trinocular body tube with camera port (requires camera adapter), 10x eyepieces, 1x objective, LED illuminator, flexible light pipes, ¼ Lambda plate, and dust cover. Request a Quote
8741-02 Nikon SMZ800N with 0.5x Objective - on plain stand with 50/50 trinocular body tube with camera port (requires camera adapter), 10x eyepieces, 0.5x objective, LED illuminator, flexible light pipes, ¼ Lambda plate, and dust cover. Request a Quote
Related Products
Designed for large sample analysis and multi focal imaging with high resolution, a high zoom range of 0.75 – 13.5x, and macro magnification of parts.
Ideal for simple polarizing and bright-field observation. Operation is easy for use at any quality control department or materials field location.
A compact and durable inverted microscope for high magnification needs. This research grade inverted microscope is ideal for flat, mounted samples.
A versatile upright microscope with LED illumination for bright-field microscopy applications, perfect for high magnification needs with samples that are not flat or mounted.
Microscope Accessories
Coax illuminators or 1/4in Lambda Plate

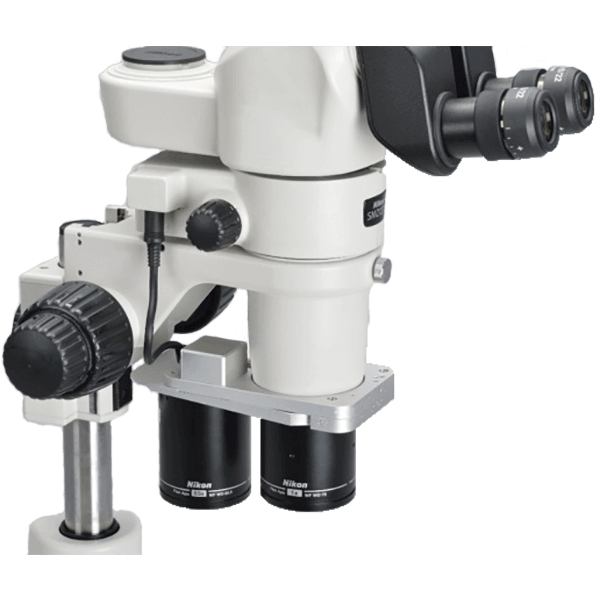

Rotatable nosepiece for 2 objectives
Camera Adapter, C-Mount, 1x, LV-TV
Camera Adapter, C-Mount, 0.7x, LV-TV
Camera Adapter, C-Mount, 0.55x, LV-TV
Stage Micrometer for Imaging and Analysis

Additional Accessories

Compatible with OmniMet software and Buehler Nikon offering
