EcoMet® 30 Semi-Automatic Grinder Polisher

EcoMet 30 Semi-Automatic

Semi-Automatic Grinder-Polisher

The EcoMet 30 semi-automatic grinder polisher machine is compatible with 8-12in [203-305mm] platens and is ideal for medium volume processes. This robust unit is easy to use and produces high surface quality, making it ideal for labs where machines are assigned to dedicated steps in the preparation process. Quickly move samples from machine to machine as they go from rough grind to final polish without having to swap working surfaces. Available in either a single or double bowl configuration so users can have two steps ready for processing without changing cloths on the platen. Combine with premium CarbiMet grinding paper and MetaDi diamond suspension fluid for an unparalleled surface finish.

EcoMet 30 Semi-auto benefits

Easy to Use
  • Easy to learn touchscreen interface
  • Easy to remove platen
  • Easy to load samples with single force mode
  • Double bowl on Twin version allows for simultaneous usage
Automated Controls
  • Setting storage for consistency and reduced setup time
  • Automated power head so users can focus on other tasks during the cycle
  • Automated polishing dispensing with up to 3 Burst dispensing units for consistency
Increased Sample Volume over Manual Machines
  • Great for samples up to 1.5in / 40mm in diameter
  • Compatible with medium capacity sample holders
  • 0.6hp [0.45kW] motor for processing more samples at once


EcoMet 30 Semi-Automatic
Model Part Number Voltage Request a Quote
Single 49-10075 85-264VAC, 50/60Hz Request a Quote
Twin 49-10076 85-264VAC, 50/60Hz Request a Quote
* Platen Kit Not included


EcoMet 30 Semi-Automatic
  EcoMet 30 Semi-Automatic Single EcoMet 30 Semi-Automatic Twin
Machine Power 100-240VAC,50/60Hz,1 phase 100-240VAC,50/60Hz,1 phase
Motor Power 440W 440W
Platen Diameter 8in [203mm], 10in [254mm], 12in [305mm] 8in [203mm], 10in [254mm], 12in [305mm]
Platen Wheel Speed 50-500rpm in 50rpm increments 50-500rpm in 50rpm increments
Wheel Direction Platen: Counter-Clockwise
Head Direction: Clockwise/Counter-Clockwise
Platen: Counter-Clockwise
Head Direction: Clockwise/Counter-Clockwise
Base & Head Power Usage 1kW, 8.8/4.3A @115/230VAC 1kW, 8.8/4.3A @115/230VAC
Touch Screnn Control Panel Full color LCD Screen,7in [75mm]diagonal Full color LCD Screen,7in [75mm]diagonal
Base & Head Sound Rating 65dB @500rpm/200rpm 65dB @500rpm/200rpm
Head Motor Power 300W 300W
Water Supply Pressure 40-116 psi (2.7-8 bar) 40-116 psi (2.7-8 bar)
Head Wheel Speed 30-200rpm in 10rpm increments 30-200rpm in 10rpm increments
Central Specimaen Force 5-40lbs[25-200N] 5-40lbs[25-200N]
Single Specimen Force 1-10lbs[5-40N] 1-10lbs[5-40N]
Central Force Specimen Capacity 1in,1.25in,1.5in,25mm,30mm,40mm 1in,1.25in,1.5in,25mm,30mm,40mm
Single Force Specimen Capacity 1in,1.25in,1.5in,25mm,30mm,40mm 1in,1.25in,1.5in,25mm,30mm,40mm
Air Supply Hose 0.25in [6mm] OD tube 0.25in [6mm] OD tube
Air Supply Pressure ≥0.4Mpa ≥0.4Mpa
Weight 165 lbs (75kg) 231.5 lbs (105kg)
Compliance CE Directives CE Directives
Consumables and Accessories

Automatic Polishing Suspension Dispensing System

Silicone Carbide Grinding Paper

Diamond Polishing Suspension
Polishing cloths for AutoMet 250
Related Products

8-12in [203-305mm]
Semi-Automatic Grinder-Polisher

8-10in [203-254mm]
Semi-Automatic Grinder-Polisher

8-10in [203-254mm]
Semi-Automatic Grinder-Polisher

8-12in [203-305mm]
Manual Grinder-Polisher
Product Literature

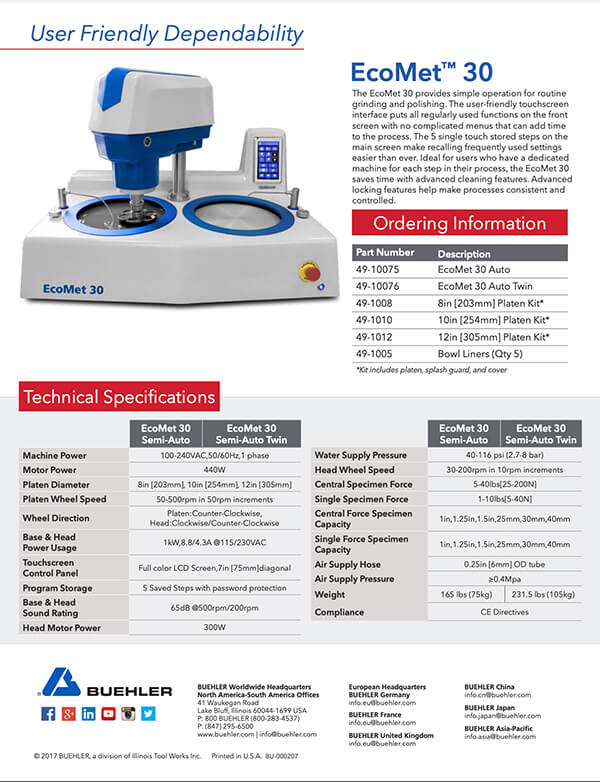

EcoMet 30 Semi-Auto Sell Sheet
