EcoMet^® 30 Semi-Automatic Grinder Polisher

EcoMet® 30 Twin Semi-Automatic Grinder Polisher

EcoMet 30 Semi-Automatic

Semi-Automatic Grinder-Polisher

The EcoMet 30 semi-automatic grinder polisher machine is compatible with 8-12in [203-305mm] platens and is ideal for medium volume processes. This robust unit is easy to use and produces high surface quality, making it ideal for labs where machines are assigned to dedicated steps in the preparation process. Quickly move samples from machine to machine as they go from rough grind to final polish without having to swap working surfaces. Available in either a single or double bowl configuration so users can have two steps ready for processing without changing cloths on the platen. Combine with premium CarbiMet grinding paper and MetaDi diamond suspension fluid for an unparalleled surface finish.

EcoMet 30 Semi-auto benefits

Easy to Use

Easy to learn touchscreen interface
Easy to remove platen
Easy to load samples with single force mode
Double bowl on Twin version allows for simultaneous usage

Automated Controls

Setting storage for consistency and reduced setup time
Automated power head so users can focus on other tasks during the cycle
Automated polishing dispensing with up to 3 Burst dispensing units for consistency

Increased Sample Volume over Manual Machines

Great for samples up to 1.5in / 40mm in diameter
Compatible with medium capacity sample holders
0.6hp [0.45kW] motor for processing more samples at once

Ordering

EcoMet 30 Semi-Automatic
Model	Part Number	Voltage	Request a Quote
Single	49-10075	85-264VAC, 50/60Hz	Request a Quote
Twin	49-10076	85-264VAC, 50/60Hz	Request a Quote
* Platen Kit Not included

Specifications

EcoMet 30 Semi-Automatic
	EcoMet 30 Semi-Automatic Single	EcoMet 30 Semi-Automatic Twin
Machine Power	100-240VAC,50/60Hz,1 phase	100-240VAC,50/60Hz,1 phase
Motor Power	440W	440W
Platen Diameter	8in [203mm], 10in [254mm], 12in [305mm]	8in [203mm], 10in [254mm], 12in [305mm]
Platen Wheel Speed	50-500rpm in 50rpm increments	50-500rpm in 50rpm increments
Wheel Direction	Platen: Counter-Clockwise Head Direction: Clockwise/Counter-Clockwise	Platen: Counter-Clockwise Head Direction: Clockwise/Counter-Clockwise
Base & Head Power Usage	1kW, 8.8/4.3A @115/230VAC	1kW, 8.8/4.3A @115/230VAC
Touch Screnn Control Panel	Full color LCD Screen,7in [75mm]diagonal	Full color LCD Screen,7in [75mm]diagonal
Base & Head Sound Rating	65dB @500rpm/200rpm	65dB @500rpm/200rpm
Head Motor Power	300W	300W
Water Supply Pressure	40-116 psi (2.7-8 bar)	40-116 psi (2.7-8 bar)
Head Wheel Speed	30-200rpm in 10rpm increments	30-200rpm in 10rpm increments
Central Specimaen Force	5-40lbs[25-200N]	5-40lbs[25-200N]
Single Specimen Force	1-10lbs[5-40N]	1-10lbs[5-40N]
Central Force Specimen Capacity	1in,1.25in,1.5in,25mm,30mm,40mm	1in,1.25in,1.5in,25mm,30mm,40mm
Single Force Specimen Capacity	1in,1.25in,1.5in,25mm,30mm,40mm	1in,1.25in,1.5in,25mm,30mm,40mm
Air Supply Hose	0.25in [6mm] OD tube	0.25in [6mm] OD tube
Air Supply Pressure	≥0.4Mpa	≥0.4Mpa
Weight	165 lbs (75kg)	231.5 lbs (105kg)
Compliance	CE Directives	CE Directives

Consumables and Accessories

Burst Dispensing System

Automatic Polishing Suspension Dispensing System

CarbiMet

Silicone Carbide Grinding Paper

MetaDi

Diamond Polishing Suspension

Polishing Cloths

Polishing cloths for EcoMet 30

Related Products

AutoMet® Pro 300

8-12in [203-305mm]
Semi-Automatic Grinder-Polisher

AutoMet® 250 Pro

8-10in [203-254mm]
Semi-Automatic Grinder-Polisher

AutoMet® 250

8-10in [203-254mm]
Semi-Automatic Grinder-Polisher

EcoMet® 30

8-12in [203-305mm]
Manual Grinder-Polisher

Product Literature

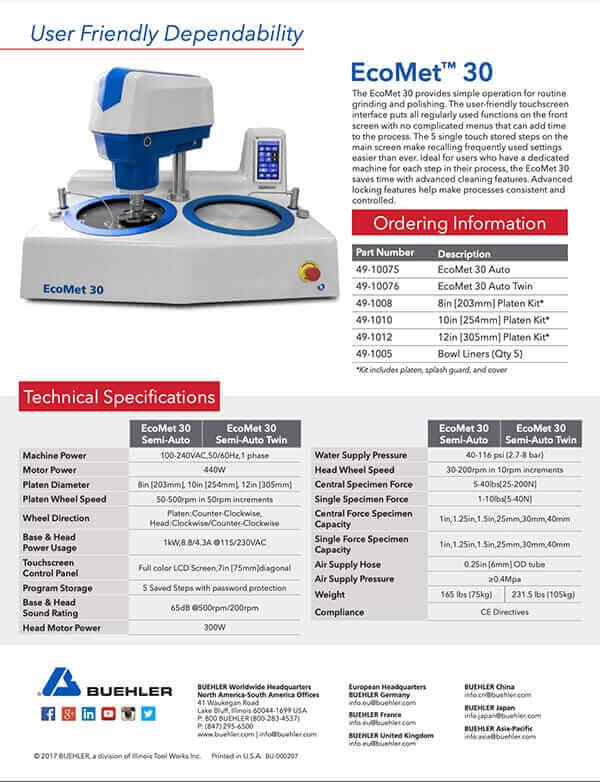

EcoMet 30 Sell Sheet

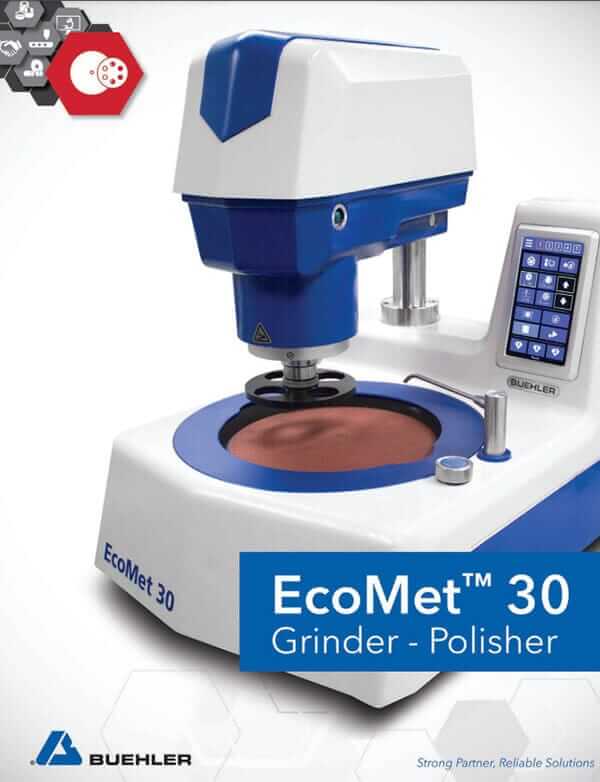

EcoMet 30 Brochure
