Silicon Carbide Grinding Papers

Silicon Carbide Grinding Papers — CarbiMet

AutoMet® CarbiMet

EASY TO USE GRINDING PAPERS FOR YOUR NEEDS

CarbiMet^®

Silicon Carbide Grinding Papers

Buehler’s CarbiMet^® & MicroCut^® Silicon Carbide grinding papers are the premier line of silicon carbide grinding papers offering efficient material removal and minimal surface damage. Our griding papers come in various grit sizes, micron sizes and diameters.

High Material Removal with Superior Surface Finish

CarbiMet grinding papers offer quick grinding times with minimal surface damage during the grinding process. Since there is less damage to remove, the amount of subsequent processing may possibly be reduced, saving valuable time in the preparation process.

Tightly controlled particle sizes ensures consistent scratch depths and patterns to prevent sample damage and rework.

Delicate Preparation

MicroCut grinding papers provide gentle material removal and superior surface finish when processing delicate or sensitive materials.

Quick Change-Overs

Apex® S backing allows for fast changeovers between grinding paper steps. Simply remove the previous paper and apply the next one without needing to remove any backings or liners.

Ordering

PSA Backed
CarbiMet
Pressure sensitive adhesive (PSA) backing for easy application directly to platen. Qty 100
Grit Size	Approx. Micron Size	8"[203mm]	10"[254mm]	12"[305mm]
60 [P60]	260	36-08-0060*	36-10-0060*	36-12-0060*
80 [P80]	188	36-08-0080	36-10-0080	36-12-0080
120 [P120]	127	36-08-0120	36-10-0120	36-12-0120
180 [P180]	78	36-08-0180	36-10-0180	36-12-0180
220 [P240]	58	36-08-0220	36-10-0220	36-12-0220
240 [P280]	52	36-08-0240	36-10-0240	36-12-0240
280 [P320]	46	36-08-0280	36-10-0280	36-12-0280
320 [P400]	35	36-08-0320	36-10-0320	36-12-0320
360 [P600]	26	36-08-0360	36-10-0360	36-12-0360
400 [P800]	22	36-08-0400	36-10-0400	36-12-0400
500 [P1000]	18	36-08-0500	36-10-0500	36-12-0500
600 [P1200]	15	36-08-0600	36-10-0600	36-12-0600
1000 [P2500]	8.4	36-08-1000	36-10-1000	36-12-1000
MicroCut
Grit Size	Approx. Micron Size	8"[203mm]	10"[254mm]	12"[305mm]
800 [P1500]	13	36-08-0800	36-10-0800	36-12-0800
1200 [P2500]	8	36-08-1200	36-10-1200	36-12-1200
P4000	5	36-08-4000	36-10-4000	36-12-4000
* Contains 50 pcs

Plain Backed
CarbiMet
Plain backing requires the use of an adhesive liner or holding band. Qty 100
Grit Size	Approx. Micron Size	8"[200mm]	10"[250mm]	12"[300mm]
60 [P60]	260	30-08-0060*	30-10-0060*	30-12-0060*
80 [P80]	188	30-08-0080	30-10-0080	30-12-0080
120 [P120]	127	30-08-0120	30-10-0120	30-12-0120
180 [P180]	78	30-08-0180	30-10-0180	30-12-0180
220 [P240]	58	30-08-0220	30-10-0220	30-12-0220
240 [P280]	52	30-08-0240	30-10-0240	30-12-0240
280 [P320]	46	30-08-0280	30-10-0280	30-12-0280
320 [P400]	35	30-08-0320	30-10-0320	30-12-0320
360 [P600]	26	30-08-0360	30-10-0360	30-12-0360
400 [P800]	22	30-08-0400	30-10-0400	30-12-0400
500 [P1000]	18	30-08-0500	30-10-0500	30-12-0500
600 [P1200]	15	30-08-0600	30-10-0600	30-12-0600
1000 [P2500]	8.4	30-08-1000	30-10-1000	30-12-1000
MicroCut
Grit Size	Approx. Micron Size	8"[200mm]	10"[250mm]	12"[300mm]
800 [P1500]	13	30-08-0800	30-10-0800	30-12-0800
1200 [P2500]	8	30-08-1200	30-10-1200	30-12-1200
P4000	5	30-08-4000	30-10-4000	30-12-4000
* Contains 50 pcs

Apex^® S Backed
CarbiMet S
High friction backing allows for easy & fast changeovers between grinding steps. Use with Apex S carrier film.Qty 100
Grit Size	Approx. Micron Size	8"[203mm]	10"[254mm]	12"[305mm]
60 [P60]	260	16-08-0060*	16-10-0060*	16-12-0060*
80 [P80]	188	16-08-0080	16-10-0080	16-12-0080
120 [P120]	127	16-08-0120	16-10-0120	16-12-0120
180 [P180]	78	16-08-0180	16-10-0180	16-12-0180
220 [P240]	58	16-08-0220	16-10-0220	16-12-0220
240 [P280]	52	16-08-0240	16-10-0240	16-12-0240
280 [P320]	46	16-08-0280	16-10-0280	16-12-0280
320 [P400]	35	16-08-0320	16-10-0320	16-12-0320
360 [P600]	26	16-08-0360	16-10-0360	16-12-0360
400 [P800]	22	16-08-0400	16-10-0400	16-12-0400
500 [P1000]	18	16-08-0500	16-10-0500	16-12-0500
600 [P1200]	15	16-08-0600	16-10-0600	16-12-0600
1000 [P2500]	8.4	16-08-1000	16-10-1000	16-12-1000
MicroCut S
Grit Size	Approx. Micron Size	8"[203mm]	10"[254mm]	12"[305mm]
800 [P1500]	13	16-08-0800	16-10-0800	16-12-0800
1200 [P2500]	8	16-08-1200	16-10-1200	16-12-1200
P4000	5	16-08-4000	16-10-4000	16-12-4000
* Contains 50 pcs

PSA Backed for MiniMet^® 1000
CarbiMet
Grit Size	Micron Size	Part Number
120 [P120]	127	36-02-0120
180 [P180]	78	36-02-0180
240 [P280]	52	36-02-0240
320 [P400]	35	36-02-0320
400 [P800]	22	36-02-0400
600 [P1200]	15	36-02-0600
MicroCut
Grit Size	Micron Size	Part Number
800 [P1500]	13	36-02-0800
1200 [P2500]	8	36-02-1200
SiC Paper PSA Backed, 2.875in [73mm] Qty 100

Accessories

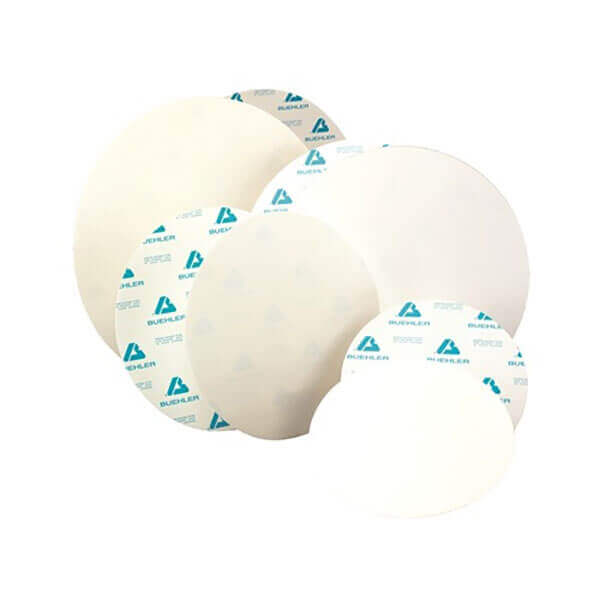

MetGrip^® Liners

Related Consumables

Diamond Grinding Discs

Polishing Cloths

Diamond Suspensions and Paste

Final Polishing Suspension

Product Literature

Apex S Sell Sheet

Polishing Guide

Buehler Product Catalog

Frequently Asked Questions

Why are there two numbers for the grit size?

Both the ANSI grit standard in the US and the FEPA grit standard in Europe relate to an average particle size, but use slightly different measurement methods. The ANSI size is succeeded by the term “grit” while he FEPA number is identified by a preceding “P”. A comparison chart is available at www.buehler.com.

How long should I use the paper for?

CarbiMet starts with fast material removal due to sharp abrasive grains. As the particles become blunt during use, the speed of material removal slows and the potential for sample damage increases. The rate of degradation depends on sample hardness, size, material, applied load, and the grit size being used. To optimize the preparation process and sample quality, we recommend using coarse grit papers for up to 5 minutes, intermediate grits for 2-5 minutes, and very fine grits for 2 minutes or less.

Why is my PSA backed paper difficult to remove from the platen?

The Pressure Sensitive Adhesive (PSA) becomes stronger with more pressure and longer time in use. Our CarbiMet products utilize an adhesive that sticks well on a wide variety of surfaces but is easy to remove. If the paper becomes difficult to remove, apply Release Agent to the platen prior to use, or use a MagnoPad Teflon coated carrier plate.

How do I refresh my Apex S surface?

The Apex S surface is designed to last hundreds of uses, but can degrade if excess debris becomes stuck to the surface. For cleaning normal debris, rotate the Apex S on a platen at 50rpm and wipe firmly with an ethanol soaked cloth. For cleaning heavily ingrained debris, use a firm silicon scraper (not hard plastic), lubricating the surface with ethanol then clean with a cloth. Do not use other solvents or detergents as this can reduce the lifetime of the Apex S surface.

How do I avoid air entrapment when applying CarbiMet S or CarbiMet PSA paper?

Begin by firmly applying one edge of the paper and work your way across the platen to push the air out.

How can I prevent embedding of SiC particles in very soft materials?

embedding can be prevented by using candle or paraffin wax. Rotate the CarbiMet paper on the platen at ~50rpm, coat the paper lightly with wax, and use as normal. The grinding rate will be reduced, but this will help to eliminate embedding problems.
