Burst Dispensing System
Burst Dispensing System
Automatic Suspension Dispensing Unit
The Burst Dispensing System is a flexible, easy to operate dispensing system for all diamond and final polishing suspensions. With a variety of operating modes, solutions can be tailored for any Buehler grinder-polisher set-up. This system improves both productivity and consistency by dispensing suspensions at a programmable flow rate level. Can be added to any grinder-polisher as a standalone unit.
Burst benefits
Automated and Easy to Use
- Automated dispensing means users can walk away during the step
- Control from the unit itself or on the touchscreen for the AutoMet Pro series

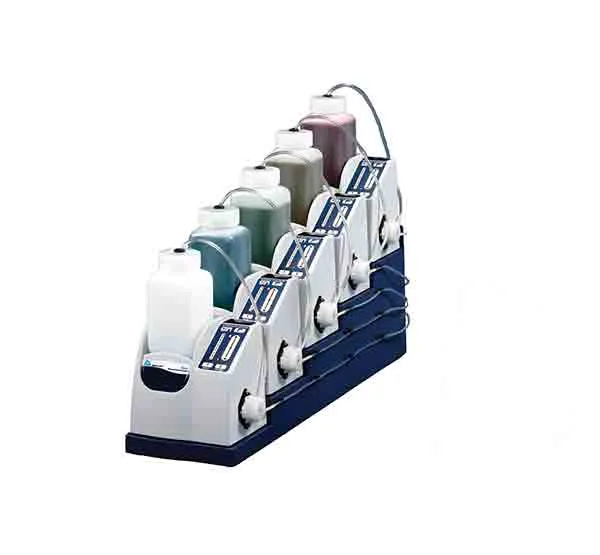

- Combine with stadium seating and dispensing arm for space saving solution for up to 5 suspensions
High Quality and Consistency
- Consistent dosing improves overall polish repeatability
- Adjust volume of suspension dispensed from level 1 to 10 to find ideal rate without overusing
Ordering
| Burst Module | Part Number | Description | Request a Quote |
|---|---|---|---|
| 40-10005 | Burst Module | Request a Quote | |
| 40-10004 | Stadium Seating Module | Request a Quote | |
| 40-10006 | Arm for AutoMet 250/300 | Request a Quote | |
| 10100 | Stir Bar | Request a Quote | |
| 402704 | Cable Module for Grinder-Polisher | Request a Quote | |
| 402832 | USB Cable for Burst Module to Burst Module | Request a Quote | |
| 402823 | Hand Switch | Request a Quote | |
Specifications
| Burst Dispensing System | ||
|---|---|---|
| Machine Power | 84-264 VAC, 50/60 Hz, 1 phase | |
| Machine Weight |
Burst Module: 5 lbs [2.26kg] Stadium Seating: 10 lbs [4.35kg] |
|
| Machine Dimensions |
Burst Module with Bottle: 10.25 H x 6 W x 5.25in D [260 x 152 x 133mm] Stadium Seating: 9 H x 6.5 W x 24.3in D [229 x 165 x 625mm] |
|
| Compliance | CE Directives | |
