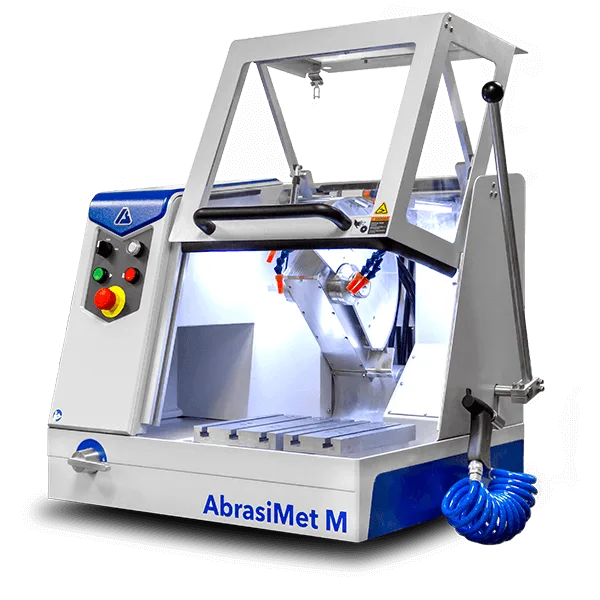

AbrasiMet^® M Manual Abrasive Cutter

AbrasiMet M

Manual Abrasive Sectioning Machine

The AbrasiMet M manual abrasive cutter is a benchtop cutter and the ultimate 12″ manual abrasive sectioning machine, designed to be easy to use, durable, and versatile for your cutting needs. This cut off saw is ideal for easy sectioning in high-paced environments. Combine with Buehler’s abrasive blades for a complete sectioning solution providing optimal sample quality and fast cutting time.

AbrasiMet M benefits

Fast and Easy Cutting

Large motor for cutting through any sample
Bright chamber lights and large window
Quick locking nut for tool-less blade change
Dual cut accessory for acheiving 2 cuts at once
Various vise table positions for compatibility with any 12mm vise
Adjustable cutting handle for best ergonomics

Achieve Great Sample Quality

6 coolant nozzles for fast cooling
Motor speed variation based on blade size for optimal rotation speed
High cutting handle feedback allows users to quickly adjust cut force

Easy to Maintain

Enclosed Motor to keep coolant and debris out
Filtering recirculation system to decrease cleaning time
High flow manual cleaning nozzle

Ordering

AbrasiMet M - Ordering
Part Number	Voltage	Request a Quote
10-10107-200	200 - 240VAC, 50-60Hz	Request a Quote
10-10107-400	380 - 460VAC, 50-60Hz	Request a Quote
10-10107-200	CSA 200-240VAC, 50-60Hz	Request a Quote

Specifications

AbrasiMet M
Motor Power at 220VAC	5.5hp[4kW]
Main Power	200-240VAC or 380-460VAC 3 Phase, 50/60Hz
Blade Movement Axis	Z-Axis
Max Sample Width	25in[635mm]
Blade Sizes	10in[254mm] \| 12in[304mm]
Blade Table Clearance	6.8in[172mm] \| 5.8in[147mm]
Cut Capacity	4.3in[109mm]
Blade Speed	3000rpm \| 2600rpm
Lighting	2 LED strips
Dual Blade Cutting Width	0.06in-1in[1.52mm-25.4mm] @.6in increments
Machine Dimensions	Width: 31.1in[791mm] Depth: 27.3in[694mm] Height: 25.7in[653mm] hood closed Height: 36.2in[919mm] hood open
T-Slot Table Dimensions	9.8in x 7.1in[250mm x 180mm](L) 9.8in x 4.5in[250mm x 115mm](R)
Safety Features	Interlock Hood Switch, Emergency Stop
Compliance	CE Directives

Consumables and Accessories

Abrasive Vising

Vising for Abrasive Saws and Cutters

Abrasive Blades

Abrasive Blades for Abrasive Saws

Cool 3

Coolants for Sectioning Machines

Recirculation Tank

Advanced Recirculation Tank for AbrasiMet M
