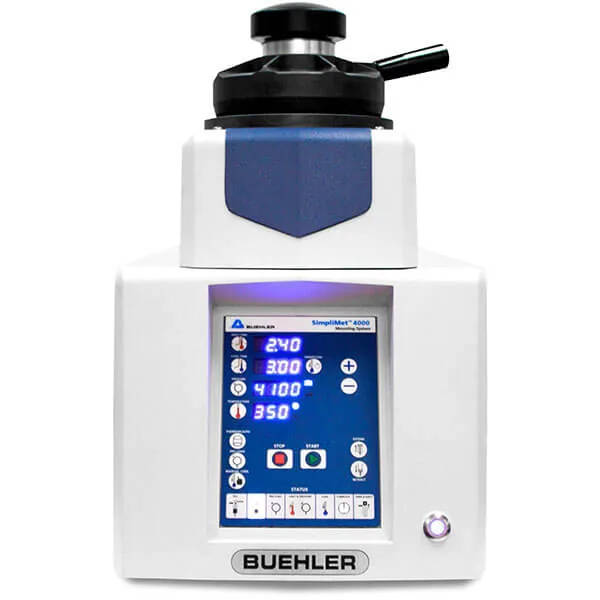

SimpliMet^® 4000 Compression Mounting Press

SimpliMet 4000

Compression Hot Mounting Machine

The SimpliMet 4000 Compression Mounting press is a robust hot mounting machine, engineered to craft high quality mounts ranging from 1 to 1.5 in or 25 to 50mm for metric. This machine prioritizes user-friendliness and rapid cycle time to keep your process moving. Additionally, the Duplex spacer allows users to produce two mounts in a single cycle. Complement your machine with Buehler’s compression mounting media for unmatched results.

SimpliMet 4000 Key Benefits

Rapid Cycle and High Throughput

SmartCool feature actively monitors for safe handling temperature, reducing cooling time to a minimum
Mold design with high efficiency heating and cooling elements reduces cycle time
Duplex spacer enables the machine to create 2 fully cured mounts in one cycle without increasing time

User-Friendly and Versatile

Intuitive control panel for easy learning and operation
Simple, low effort top cap closure
Status bar gives real-time feedback on cycle progress
Single-button operation for curing transparent mounting media and other thermoplastics
PreLoad option protects delicate samples

Compact footprint

12.25in [311mm] width saves benchtop space
Multiple machines can be conveniently lined up side by side in higher volume environments, optimizing space usage

Ordering

SimpliMet 4000
Part Number	Voltage	Request a Quote
20-1011-5001 with 1in Mold	85-264VAC,50/60Hz	Request a Quote
20-1011-5025 with 25mm Mold	85-264VAC, 50/60Hz	Request a Quote
20-1011-5125 with 1.25in Mold	85-264VAC, 50/60Hz	Request a Quote
20-1011-5030 with 30mm Mold	85-264VAC, 50/60Hz	Request a Quote
20-1011-5150 with 1.5in Mold	85-264VAC, 50/60Hz	Request a Quote
20-1011-5040 with 40mm Mold	85-264VAC, 50/60Hz	Request a Quote
20-1011-5050 with 50mm Mold	85-264VAC, 50/60Hz	Request a Quote

Specifications

SimpliMet 4000
Operation	Automatic Electrohydrolics
Mounting Mold Sizes	English: 1in, 1.25in, 1.5in Metric: 25mm, 30mm, 40mm, 50mm
Mounting Parameters
Pressure	1000 – 4400psi(70 – 300bars) operational pressure range +/- 10% Adjustable in 50psi (5bar) increments Preload pressure function applies gradual presssure for delicate specimens 350psi (24bar)
Heat Time	User Selectable time from 1-20 minutes
Heating Tempurature	120° F – 420° F (50° C – 220° C) operation tempurature range
Heating Power	1500 Watt@115VAC / 1900 Watt@230VAC
Cooling Time	User Selectable or Smart Cool User Selectable time from 1-30 minutes Adjustable in 10 second increments Smart Cool Intelligent cooling system automatically cools until sample temperature reaches 40°C
Thermoplasmic Function	Automatically sets correct parameters fro thermoplastic resins such as TransOptic TM and cools the mount in a contolled, linear fashion appropriate for the mounting media
Noise Level	Max 62 dB maximum at 1 meter from the front of the machine, while raising and lowering the ram with the mold closure open
Working Environment	Tempurature: 40° F to 104° F / 5° C to 40° C Humidity: 30 – 90% humidity, non-condensing
Electrical
Voltage/Frequency	85-264VAC, 50/60Hz 1 phase
Water inlet	1/4in OD tubing or 3/8in OD tubing
Water Outlet	Drain: 1/4in ID x 1/3in OD hose Vent: 1/4in ID x 1/2in OD hose
Length	26.00in [660mm]
Length from rear of machine to front feet	21.25in [540mm]
Width	12.25in [311mm]
Height Closed	19.62in 498mm
Height Open	20.62in [524mm]
Weight	120lbs 54kg
Compliance	CE, PSE, RoHS, WEEE

Consumables and Accessories

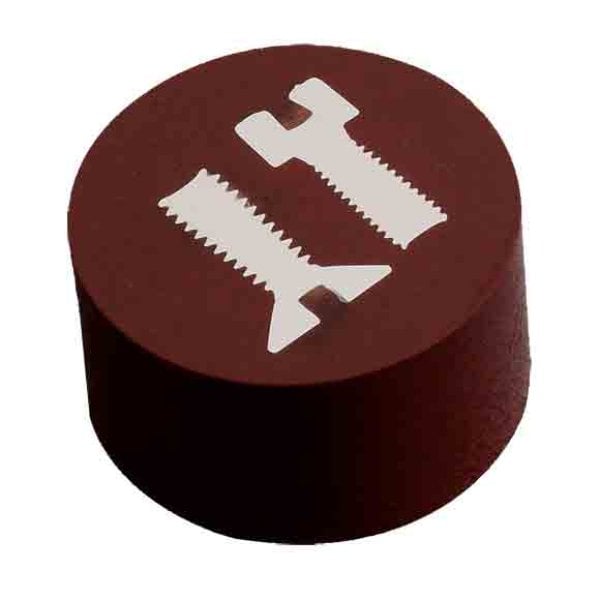

Compression Mounting Compounds

for SimpliMet 4000

Release Agent

for Compression or Castable Mounting

Mounting Accessories

Support Clips, Additives and Mixing Cups
