SPECIALTY SOLUTIONS

Specialty Grinding and Polishing

Some applications can benefit from a specialty product or solution. A variety of diamond lapping films, abrasive discs and powders are here to meet your application specific needs.

UltraPrep^® Diamond Lapping Films

UltraPrep diamond lapping films are designed for applications where surface flatness and minimal deformation is critical. These lapping films are available in a wide range of sizes from 0.1µm to 30µm. Applications include microelectronic devices, wafers, ceramics, optical fibers, petrographic, and more.

FibrMet^® Abrasive Discs

FibrMet abrasive discs are coated with an aluminum oxide abrasive. These discs can be used wet or dry and are ideal for fine grindinging and polishing applications, such as optical fiber and microelectronics where surface flatness is essential. These abrasive discs are available in a wide range of sizes from 0.3µm to 12µm.

Abrasive^® Powders

Abrasive powders are for fine grinding of cast iron and tin materials. Mixing is required with distilled water to achieve desired consistency.

Ordering

UltraPrep Diamond Lapping Films (Qty 5)
UltraPrep Diamond Lapping Films are designed for various material applications including microelectronic devices, wafers, ceramics, optical fibers, petrographic, and other metallographic materials. Ideal for preparation applica- tions where surface flatness and minimal deformation are critical.
Micron	8in [203mm] PSA Backed	8in [203mm] Plain Backed
0.1µm	15-6791	15-6792
0.5µm	15-6795	15-6796
1µm	15-6801	15-6802
3µm	15-6803	15-6804
6µm	15-6806	15-6807
9µm	15-6809	15-6810
15µm	15-6815	15-6816
30µm	15-6830	15-6831

FibrMet Abrasive Discs (Qty 50)
FibrMet Abrasive Disc are PSA (polyester backed) films, approx. 0.1 mm thick, coated with an aluminum oxide abrasive. These discs can be used wet or dry and are most suitable for fine grinding and polishing application, such as optical fiber and microelectronics where resultant surface flatness is essential.
Micron	4in [102mm]	8in [203mm]	12in [305mm]
0.3μm	69-3104	69-3174	69-3124
1μm	69-3103	69-3173	69-3123
3μm	69-3102	69-3172	69-3122
9μm	69-3101	69-3171	69-3121
12μm	69-3100	69-3170

Aluminum Oxide Powder
Aluminum Oxide Powder is used for fine grinding on cast iron, tin, or cloth-covered platens. They are mixed with distilled water to the desired consistency.
Part Number	Description
406603030080	3µm 5lb [2.3kg]
406605050080	5µm 5lb [2.3kg]

Related Consumables

Silicon Carbide Grinding Papers

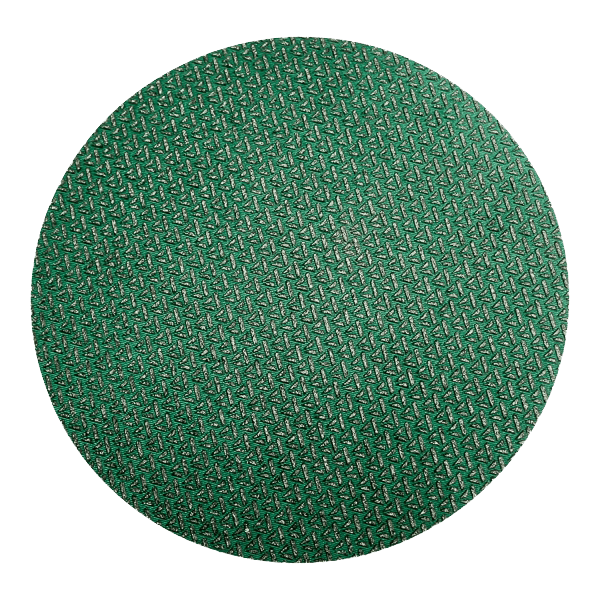

Diamond Grinding Discs
