Nikon Eclipse MA200 Inverted Microscope
Nikon MA200
Inverted Microscope
Inverted Microscopes, known for being compact and durable, are ideal for high-magnification tasks, analyzing mounted samples with flat surfaces, and providing versatility by accommodating various light sources for diverse analysis methods. The Nikon Eclipse MA200 Inverted Microscope boasts high stability along with a smaller footprint compared to conventional models. Its design facilitates easy access to essential components like the stage handle, nosepiece, BF/DF change lever, and diaphragms—all conveniently located on the front side.
This system offers:
- Ergonomic design with all controls easily accessible from the front
- DIC configuration includes intelligent nose-piece which displays objective positions
- Slider slots available for Grain Size and Scale Slider reticle which show up on camera as well as through the eyepiece
| Inverted/Compound Features Comparisons | ||
|---|---|---|
| MA100N | MA200 | |
| Observation Methods | BF Simple Polarizing | BF, DF, DIC, & POL |
| Illuminators | High-intensity white LED | Halogen lamphouse with 50W bulb |
OmniMet® Imaging & Analysis Software
The OmniMet system integrates microscopes, cameras, and image analysis software via an intuitive interface. Easily view and analyze images from your microscope, or import them into OmniMet for precise analysis. With flexible functionality and analytical power, OmniMet meets diverse metrology needs for image data archiving and quantitative analysis.
Point-and-click Measurements
- Make simple to complex measurements with intuitive menu options
- Reduce steps with application specific Modules and Scripts
- Comply to national standards with the click of a button
Automated Imaging Analysis
- Create or run pre-programmed Scripts to eliminate repetitive steps
- Improve quality control by following the same process each time
- Export data to Word or Excel automatically
Flexible Modular System
- Choose from a variety of Modules and Scripts to customize according to application
- Choose level of automation with six different Editions
- Upgrade functionality from one Edition to another at any time
Seamless Integration
- Connect to a multitude of cameras, microscopes, and motorized stages
- Calibrate captured images to equipment magnification
- Purchase as a system for a turnkey solution
Ordering
| Nikon MA200 Ordering | ||
|---|---|---|
| Part Number | Configuration | Request a Quote |

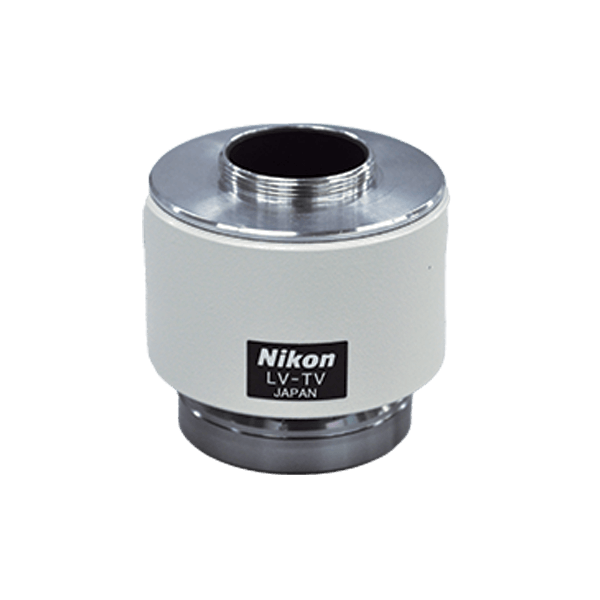

| 8744-01 | Nikon MA200 BF Inverted Microscope - with stationary trinocular body tube, 10x eyepieces, LV-TV camera ports on body and trinocular head (requires camera adapter), halogen lamphouse with 50W bulb, manual XY stage with insert (50 x 50mm travel), 6-position nosepiece with 5x, 10x, 20x, and 50x Epi Plan Fluor BF objectives, and dust cover. | Request a Quote |
| 8744-02 | Nikon MA200 BD/DF Inverted Microscope - with stationary trinocular body tube, 10x eyepieces, LV-TV camera ports on body and trinocular head (requires camera adapter), halogen lamphouse with 50W bulb, manual XY stage with insert (50 x 50mm travel), 5-position nosepiece with 5x, 10x, 20x, and 50x Epi Plan Fluor BF objectives, and dust cover. | Request a Quote |
| 8744-03 | Nikon MA200 BF/DF/DIC Inverted Microscope - with stationary trinocular body tube, 10x eyepieces, LV-TV camera ports on body and trinocular head (requires camera adapter), halogen lamphouse with 50W bulb, manual XY stage with insert (50 x 50mm travel), polarizer and analyzer set, DIC slider, 5-position nosepiece with 5x, 10x, 20x, 50x Epi Plan Fluor BD objectives and dust cover. | Request a Quote |
