Europe | ENWilson® Rockwell® 574 Hardness Tester
Rockwell 574 Hardness Tester
Industry Leading Gauge Repeatability and Reproducibility (GR&R)
The Wilson Rockwell 574 Hardness Tester Series stands out for its quality, durability, and leading Gauge Repeatability and Reproducibility (GR&R) in hardness testing instruments. Offering regular scale or twin (regular and superficial scale) models, these testers conform to ASTM E18 and ISO 6508 standards, catering to various needs.
Wilson Rockwell 574 Benefits
- Experience unparalleled GR&R performance with the Rockwell 574. Its high-precision depth measurement ensures utmost accuracy for consistently repeatable testing.
- Built to endure high-volume production environments, witness demonstrated robust design with stainless steel internal components. Elevate your testing capabilities with a diverse range of dynamic accessories and anvil options, setting the standard for strength.
- Powerful yet uncomplicated, this straightforward machine boasts an auto-braking system on preload for seamless operation. With a built-in USB port enabling rapid data transfer to Microsoft Excel or other applications, experience effortless usability and efficiency in one package.
Ordering
| Wilson Rockwell 574 Ordering | ||
|---|---|---|
| Part Number | Description | Request a Quote |
| WH574R | 574R – for all Regular test scales | Request a Quote |
| WH574T | 574T – for all Regular and Superficial test scales | Request a Quote |
Specifications
| Wilson Rockwell 574R Regular |
Wilson Rockwell 574T Twin | |
|---|---|---|
| Pre-load | 10kgf (98.07N) | 3, 10kgf (29.42, 98.07N) |
| Main-load | 60, 100, 150kgf (588.39, 980.67, 1471N) | 15, 30, 45, 60, 100, 150kgf (147.1, 294.19, 441,29, 588.39, 980.67, 1471N) |
| Hardness Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y |
| Test load type | Calibrated Spring (Minor Load), Dead weight stack (Major load) | |
| Test cycle type | Motorized with automatic pre-load brake | |
| Vertical test capacity | 11.43in [289mm] accessories may decrease available capacity | |
| Horizontal test capacity | 6.93in [175mm] at the top, 6.13in [155mm] at the bottom | |
| Indenters (optional) | 120º Diamond cone, 1/16in, 1/8in, 1/4in, 1/2in Ball | |
| Data-out | USB and RS232 | |
| Standards Compliant | ASTM E18, ASTM D785, ASTM B294, ISO 6508, JIS Z 2245, GB/T 230 | |
| Power | 100 - 240VAC, 60/50Hz | |
Consumables and Accessories
Related Products
Maximize productivity with the versatile Wilson RH2150 series. Offering a broad testing range and user-friendly interface for efficient and flexible operations.

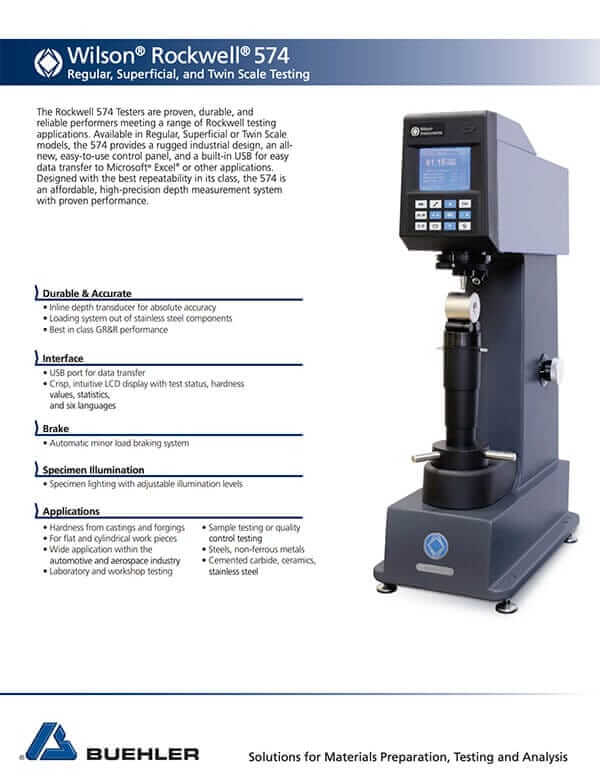

Product Literature
