Wilson^® RH2150 Rockwell Hardness Tester

RH2150 Rockwell Hardness Tester

RH2150 Series prioritizes flexibility, ergonomic testing, and swift data output

Get more done with the Wilson RH2150 Rockwell Hardness Tester. Through its vast capability of testing scales and large load range from 1 to 187.5 kgf, the RH2150 caters to diverse applications. Offered in two sizes, 10 and 14 inches, it ensures flexibility for various testing needs. The user-friendly interface seamlessly integrates with optional DiaMet software, providing easy and quick operation. Notable features include an auto-stop clamping device, adjustable LED workspace illumination, and optional indenter extensions. The RH2150 Series prioritizes flexibility, ergonomic testing, and swift data output.

Wilson Rockwell RH2150 Benefits

Advancing a legacy

Leveraging the concept of the Wilson RB2000, the RH2150 advances Rockwell testing with modern features tailored for quality control and research demands. Introducing a revamped user interface for streamlined testing, or seamlessly integrate with an optional DiaMet software package.

Harnessing Power

With high demand for tighter manufacturing tolerances and advanced processes, the RH2150 excels in required reliability. This machine, characterized by a sheet metal casting and load cell protection, ensures resilient performance. Options like a secure clamping device and an innovative external foot switch facilitate fast and robust operations.

Adaptable Simplicity

The Wilson RH2150 seamlessly transitions from the production floor to the R&D lab. Innovative adapters and anvils optimize facility utilization across various applications. Its accessories accommodate diverse parts and components, enhancing its versatility. Balanced with its easy-to-use interface, the RH2150 features the flexibility required to meet industry’s escalating demands.

Diamet^® Hardness Testing Software

Enhance sample throughput while ensuring consistency with minimal complexity through our DiaMet 2.0 software system.

Ordering

Wilson Rockwell Rh2150 Ordering
Part Number	Description	Request a Quote
W2101R	Size 1 - 10in [254mm] - with regular Rockwell scales, 10-187.5 kgf	Request a Quote
W2102R	Size 2 - 14in [356mm] - with regular Rockwell scales, 10-187.5 kgf	Request a Quote
W2101T	Size 1 - 10in [254mm] - with regular and superficial Rockwell scales, 1-187.5 kgf	Request a Quote
W2102T	Size 2 - 14in [356mm] - with regular and superficial Rockwell scales, 1-187.5 kgf	Request a Quote
Every tester includes a 63mm flat anvil, as well as a 1/16” ball indenter

Specifications

Test Load range	1-187.5 kgf (9,81 - 1838,7 N)
Test load type	Closed loop
Indenter holder	Snap grip
Available indenters	Rockwell: Rockwell diamond cone 120°, 1/16”, 1/8”, ¼”, ½” carbide ball indenters Brinell: 1mm, 2.5mm, 5mm and 10mm ball indenters
Rockwell test procedures ISO 6508-1, ASTM E18	A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y
Plastic testing Ball indentation ISO 2039-1	HB5: 49N, 132N, 358N, 961N
Plastic testing Ball indentation ISO 2039-2	HRR, HRL, HRM, HRE
Rockwell carbon testing Ball indentation DIN 51917	HR5: 7, 20, 40, 60, 100, 150 HR10: 20, 40, 60, 100, 150
Brinell depth testing (non-standardized) HBW-T	HBW-T2.5: 31.25, 62.5, 187.5 HBW-T5: 25, 62.5, 125 HBW-T10: 100
Machine control	7” User Interface for data tracking, statistics, indirect verification, data export via USB or ethernet, physical start and stop buttons
Z Axis	Automatic Z axis drive, physical up and down movement buttons
Clamping device (optional)	Unique clamping hat to hold samples in place before and during testing, clamping force 55 kgf (121lbs)
Workspace illumination	White LED for proper indent positioning
Maximum Specimen Height	254 mm [10 in]; 356 mm [14 in]
Maximum Specimen Weight	50 kg (centered on anvil)
Depth from Center line	200mm
Anvil	63mm flat anvil with 19mm pin, more anvils optional as well as T-slot table
Operating Temperature Range	10° to 38°C [50° to 100°F]
Humidity	10% - 80% non-condensing
Machine Dimensions (D × W × H)	600mm [28in] × 350mm [21in] × 1260mm [39.2in] (size 1) or 1360mm [41.2in] (size 2)
Accessory (optional)	Flat anvils, V anvils, Jack rest, indenter extensions 2”, 4” and 6” (only with clamping device)
Machine Net Weight	125 kg (275lbs)
Power Supply	110 - 240V / 50 - 60Hz

Consumables and Accessories

Test Blocks

Available in a wide range that set the standard for industry

Indenters

Browse our selection of ISO & ASTM Certified Indenters

Rockwell Anvils

Find sample support that’s right for your application

Rockwell Additional Accessories

Enhance your machine with accessories that meet your tailored application

Related Products

Wilson^® Rockwell^® 574

The workhorse of the Wilson Rockwell product line, with ultimate ease of use and segment leading GR&R performance.

Wilson^® UH400 Series

Designed for ultimate versatility, Buehler Universal testers are constructed to support several hardness scales within one machine.

Product Literature

Wilson RH2150 Brochure

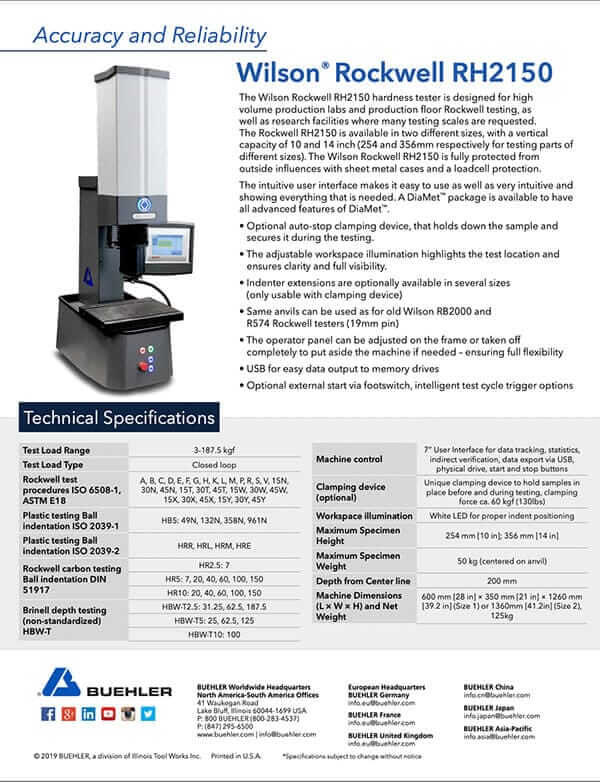

Wilson RH2150 Sell Sheet
