Wilson^® BH3000 Brinell Hardness Tester

BH3000 Brinell Hardness Tester

Closed-Loop Load Cell Technology

The Wilson BH3000 Brinell Hardness Tester stands as a robust Brinell hardness tester, boasting a wide range from 62.5 kgf to 3000 kgf. Crafted with rugged construction for resilience in challenging environments, this reliable hardness tester blends high rigidity and closed-loop load cell technology to ensure precise and secure load applications. Noteworthy features include a clamping device for part security, an intuitive user interface for easy setup and operation, a built-in keypad calculator for accurate HB hardness values, and an LCD screen, collectively enhancing the user experience.

Wilson BH3000 Benefits

Rigid Workhorse

Built with robust construction to endure demanding environments
Clamping device to support secure parts with exchangeable anvils
Accurate and efficient load cell technology

User-Friendly

Simple, LCD screen with clear results and statistics
Integrated hardness calculator for values and conversions

Complete Flexibility

Wide load range of 62.5 kgf to 3000kg
Optional optics for external measuring
Extensive selection of specimen support with various anvils for any application

Ordering

Wilson BH3000 Brinell Ordering
Part Number	Description	Request a Quote
WH3000BH	Hardness Scales: HB \| Main Load: 62.5 - 3000kgf (612.92 - 29419.95N)	Request a Quote

Specifications

Hardness Scales	HB
Display	Hardness HB value (after entering diagonal length into keypad calculator); Mean diagonal length; Test force; Dwell time; Ball diameter; Conversion; Limits
Hardness	Resolution 0.1 unit if HB < 100; else 1.0 unit
Standards Compliant	ISO 6506, ASTM E10, JIS
Test Load Type	Load Cell Closed-Loop Control System
Test Cycle	Automatic
Brinell Scales	HBW 10/3000, HBW 10/1500, HBW 10/1000, HBW 10/500, HBW 10/250, HBW 10/100, HBW 5/750, HBW5/250, HBW 2.5/187.5, HBW 2.5/62.5
Indenters (optional)	Brinell Balls: 2.5, 5, 10mm
Load Duration	2 - 99 sec
Specimen Accommodation	Vertical space 11in (280mm) Horizontal space (from center-line) 5in (130 mm) External surfaces roughly grinded, Ra < 21.6 μm
Cylindrical Surfaces	Down to 0.1in (3mm) diameter
Power	100 - 240VAC, 60/50Hz
Optics (optional)	External measuring microscope; mechanical 20x, 40x or 60x, digital King Scan IV PC based measurement system

Consumables and Accessories

Test Blocks

Available in a wide range that set the standard for industry

Indenters

Browse our selection of ISO & ASTM Certified Indenters

Anvils

Find sample support that’s right for your application

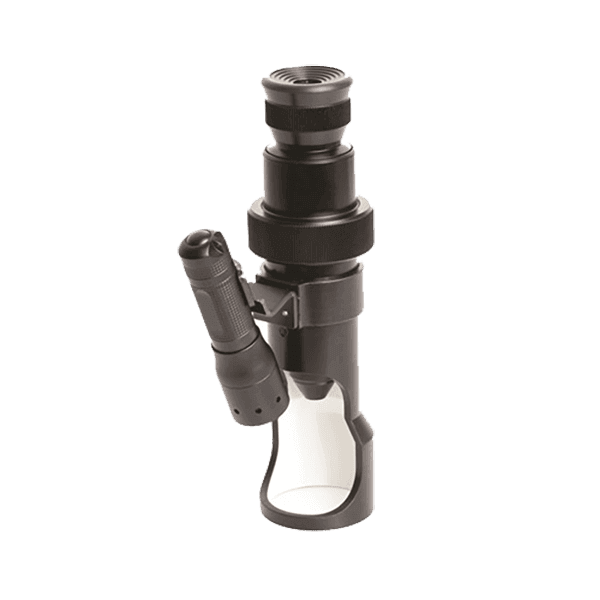

Microscope & Measurement Systems

Optional optic selection for mechanical and automatic based measurements
