Wilson® UH4000 Universal Hardness Tester
UH4000 Universal Hardness Tester
Automated Hardness Testing System
The Wilson UH4000 Universal Hardness Tester series, tailored for high-volume applications from innovative labs to the production floor, is offered in three configurations: the UH4750, UH4250, and the Auto UH4250 with motorized XY stage. Designed to execute various hardness scales within a single machine, typically for higher loads (>5kgf), these testers encompass all comprehensive Vickers, Knoop, Rockwell, and Brinell scales. Adhering to ISO 6506, 6507, 6508, and 4545, as well as ASTM E18, E10 & E92 standards, the UH4000 series ensures complete hardness testing capabilities. Moreover, it accommodates plastics and carbon testing in line with ISO2039 and DIN51917.
Wilson UH4000 Benefits
- 8 position turret for complete flexibility
- Complete selection of anvils and sample holders for all applications
- Optional clamping tool, adding stability throughout the testing process
- fast and simple operation caters to the requirements of first-time users, while preserving the flexibility essential for complex applications
- Machine selection includes a range of DiaMet software solutions for each of the three UH4000 series models
- The standard models, UH4250 and UH4750, will be controlled by DiaMet Basic, including autofocus and automeasurement. The UH4250 Auto model includes a motorized stage and will be controlled by DiaMet Enterprise
Diamet® Hardness Testing Software
Automated
By prioritizing swift and simple operation for all users, DiaMet software can utilize high automation, ensuring flexibility for the future.
Fast
Achieving auto-focus and auto-measurement in 5 seconds or less, deliver the fastest test cycle for precise and efficient results.
Safe
Emphasize machine safety with collision-resistant indenters and objectives, ensuring safety meets flexibility.
Versatile
Optimized for Vickers, Knoop, Rockwell, Superficial Rockwell, Brinell, and K1c fracture as per ISO and ASTM standards.
Ordering
| Wilson UH4000 Series Ordering | |||
|---|---|---|---|
| Part Number | Description | Request a Quote | |
| Wilson UH4250 | |||
| W4250 | Load Range 0.5-250kgf, Standard Monitor 24" | Request a Quote | |
| W4251 | Load Range 0.5-250kgf, Touchscreen 19.5" | Request a Quote | |
| Wilson UH4750 | |||
| W4750 | Load Range 3 - 750kgf, Standard Monitor 24" | Request a Quote | |
| W4751 | Load Range 3 - 750kgf, Touchscreen 19.5" | Request a Quote | |
| Wilson UH4250 Auto* | |||
| W4250XY | Load Range 0.5- 250kgf, 24" Standard Monitor, 180 x 180mm motorized stage | Request a Quote | |
| W4251XY | Load Range 0.5-250kgf, 19.5" Touchscreen, 180x180mm motorized stage | Request a Quote | |
| *Clamping device W4100CL not applicable | |||
Specifications
| Wilson UH4250 | Wilson UH4750 | |
|---|---|---|
| Hardness Scales | HV 0.5 - HB 10/250 | HV 3 - HBW 10/750 |
| Turret | 8 positions for objectives and indenters | |
| Indenters (Optional) | Brinell 1mm, 2.5mm, 5,0mm and 10,0mm carbide balls, Rockwell diamond cone, 1/16", 1/8", ¼", ½" carbide ball indenters, Vickers diamond and Knoop diamond | |
| Objectives Long Working Distance (Optional) | 0.5x (optional with ring light), 5x, 10x, 20x, 40x, 50x | |
| Optics | 5-megapixel USB 3 digital camera, with digital zoom and autofocus | |
| Test Loads | 0.5-250kgf | 3-750kgf |
| Test Load Type | Closed loop | |
| Test Standards | Brinell (ISO 6506-1, ASTM E10), Vickers (ISO 6507-1, ASTM E92), Rockwell (ISO 6508-1, ASTM E18), Knoop (ISO4545-1, ASTM E384), Plastic testing ball indentation (ISO 2039-1, 2039-2) | |
| Z Spindle | Manual hand wheel and automatic Z axis drive | |
| Maximum Specimen Height/Weight | 300 mm (11.8 in), 70 kg (154 lb) | |
| Test Stage Dimensions | T-slot stage with 12mm slot width, 300mm [11.8in] x 400mm [15.7in] | |
| Machine Dimensions (L × W × H) | 704 Mm (28 in) × 534 mm (21 in) × 995 mm (39.2 In) | |
| Machine Net Weight | 300kg (660lb) | |
| Power | 100 - 240VAC, 50-60Hz | |
Consumables and Accessories
Related Products
Maximize productivity with the versatile Wilson RH2150 series. Offering a broad testing range and user-friendly interface for efficient and flexible operations.

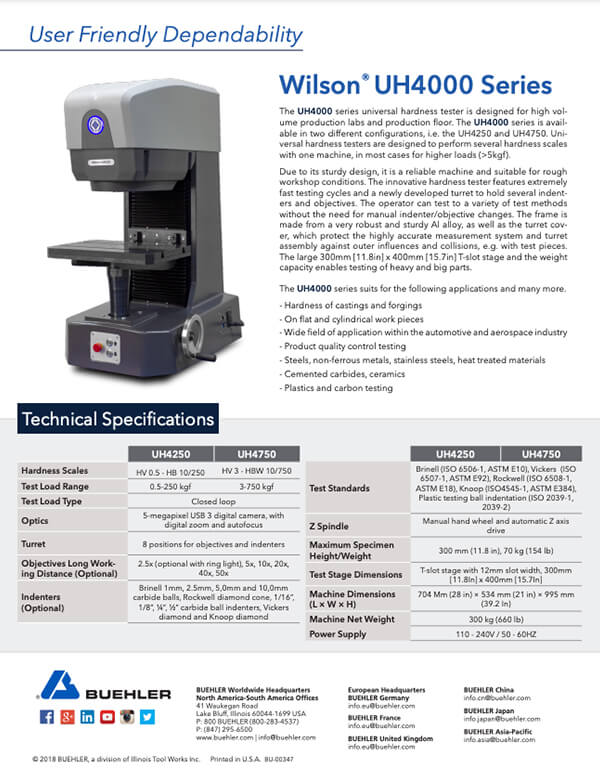

Product Literature
