Hardness Legacy Testers
Legacy Hardness Testers
Since 1936, Buehler has been at the forefront of materials preparation and hardness testing, building on a foundation of legacy machines trusted by industries worldwide. For over a century, Reicherter, Wolpert, and Wilson have pioneered groundbreaking hardness testers, setting the benchmark for quality and precision. Today, Buehler honors their legacy, continuing to innovate and meet the growing demands of modern manufacturing. For service inquiries, please contact our service team.
Wilson Hardness Legacy Testers
The Wilson® hardness brand of hardness testers was originally known as the Wilson Mechanical Instrument Company. Here Stanley Rockwell and founder Charles H. Wilson introduced the Rockwell hardness tester, an industry standard. Later, Wilson became the home of the legendary Tukon line of micro-indentation testers – renowned for Knoop and Vickers testing. These early inventions revolutionized industry and paved the way for Wilson today, with innovations that improve usability and allow for full connectivity and automation like the DiaMet software. Contact our service team for any questions about legacy testers, or you can view our Legacy Tester program flyer.
Rockwell 4JR (+/- 1945 - 1960)
- Analog Rockwell Hardness Tester
- Scales: HRA, HRB, HRC, etc
- Rockwell: 60, 100 and 150 kgf
- Today’s Tester: Rockwell® 574 & 2150

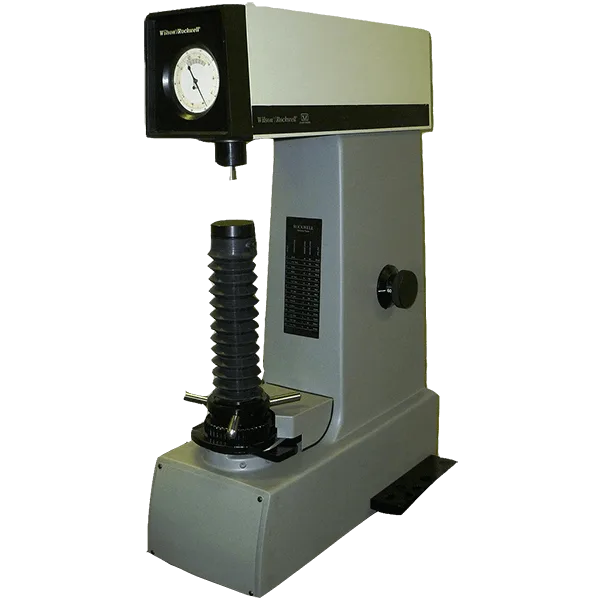

Rockwell 504R (+/- 1960 - 2000)
- Analog Rockwell Hardness Tester
- Regular Scales: HRA, HRB, HRC
- Superficial Scales: HR15N, HR30T
- Rockwell: 10, 30, 45, 60, 100 and 150 kgf
- Today’s Tester: Rockwell 574 & 2150

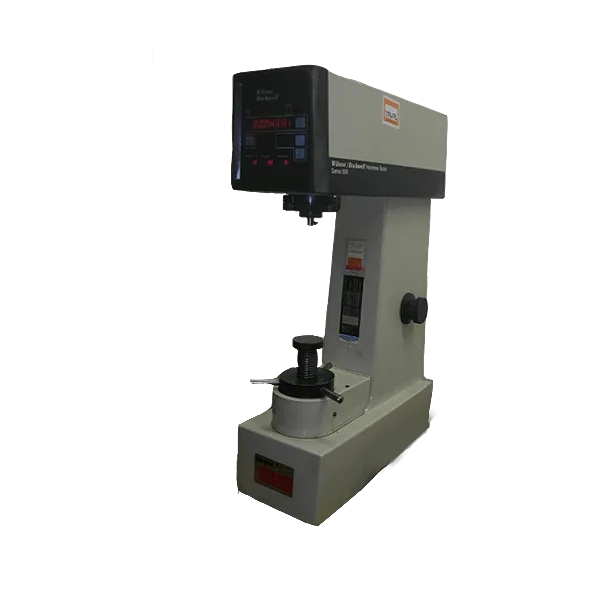

Rockwell 524T (+/- 1970 - 2005)
- Digital read-out Rockwell Hardness Tester
- Regular Scales: HRA, HRB, HRC, etc
- Superficial Scales: HR15N, HR30T, etc
- Rockwell: 10, 30, 45, 60, 100 and 150 kgf
- Today’s Tester: Rockwell 574 & 2150
Wolpert Hardness Legacy Testers
Wolpert, a well-known name in the hardness testing industry, is known for the practical designs which meet the needs of every hardness testing application. Wolpert has been manufacturing hardness testers since 1927.
DigiTestor UH930 (+/-1990 - 2015)
- First closed-loop universal tester on the market
- Universal Hardness Tester 1-250 kgf
- With Integrated optics
- For Vickers, Brinell and (Super-) Rockwell
DiaTronic (+/- 1980 - 1990)
- Universal Hardness Tester 1-250 kgf
- With Integrated optics
- Vickers: (1-2-3) 5-10-20-30-40-50
- Brinell: 15.625-31.25-62.5-125-187.5-250
- Rockwell: 60, 100 and 150 kgf
HT 8004 (+/- 1975 - 1985)
- Rockwell Hardness Tester
- Digital or Analog Display
- Scales: HRA, HRB, HRC, etc
- Rockwell: 15, 20, 45, 80, 100, 187.5 and 250 kg
- Today’s Testers: R574 & R2150
DiaTestor 3a & 3b (+/- 1965 - 1958)
- Brinell Hardness Tester
- Scales: HB10/3000, HB10/1000, HB5/750
- Brinell: 120, 187.5, 250, 500, 750, 1000, 1500 and 3000 kgf
- Integrated optics
- For heavy castings and forgings
- Optional motorized spindle
- Today’s Tester: BH3000
DiaTestor 2RC (+/- 1949 - 1975)
- Universal Hardness Tester 1-250 kgf
- Vickers: (1-2-3) 5-10-20-30-40-50
- Brinell: 15.625-31.25-62,5-125-187.5-250
- Rockwell: 60, 100 and 150 kgf
- Integrated optics
V-Testor 2 (+/- 1985 - 1991)
- Vickers Hardness Tester
- Vickers & Knoop
- Eyepiece
- Objective
- Manual Spindle
- Oildamper for load control
- Today’s Tester: VH1202, VH1150, VH3100 & VH3300
Reicherter Hardness Legacy Testers
Reicherter produced Vickers, Rockwell, Brinell and Universal hardness testers that were known globally and manufactured in Germany with sturdy machine construction, maximized testing accuracy and ease of use and maintenance. They were used to test crankshafts, camshafts, engine blocks and other large workpieces. They were some of the earliest testers to be integrated into high throughput production lines of larger and heavier test pieces.
UH250 Universal Hardness Tester (+/- 2005)
- Universal Hardness Tester 1-250 kgf
- Vickers: (1-2-3) 5-10-20-30-40-50
- Brinell: 15.625-31.25-62.5-125-187.5-250
- Rockwell: 60, 100 and 150 kgf

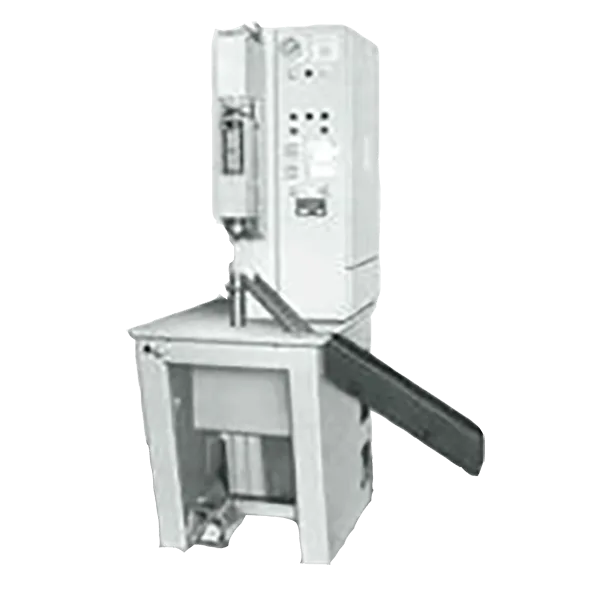

BRIRO Automat HE1
- Rockwell, Rockwell Superficial and Brinell HBT Hardness Tester
- Low-mass spring load
- Automatic test sequence

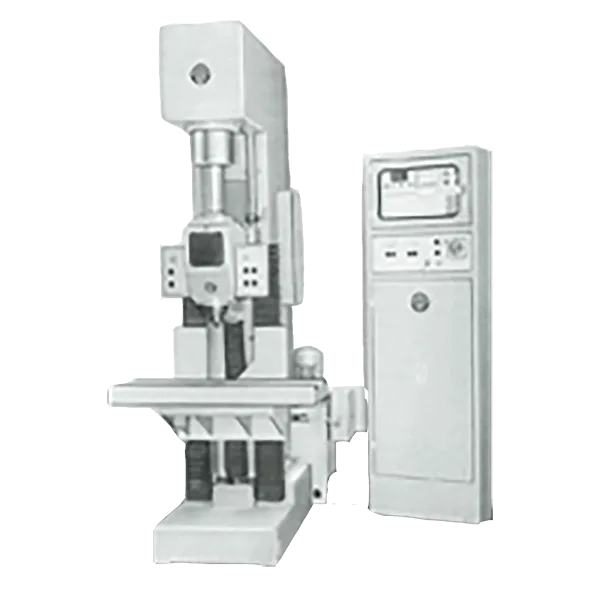

Briro BEV
- Universal Hardness Testers, depth measurement
- BRIVISKOP: Vickers and Brinell
- BRIRO: Rockwell
BRIRO VA
- Rockwell Hardness Tester
- Original Reicherter Clamping
- 50 – 100 kgf, 62.5 – 187.5 kgf, 100 – 250 kgf
- Today’s Tester: Rockwell® 574 & 2150

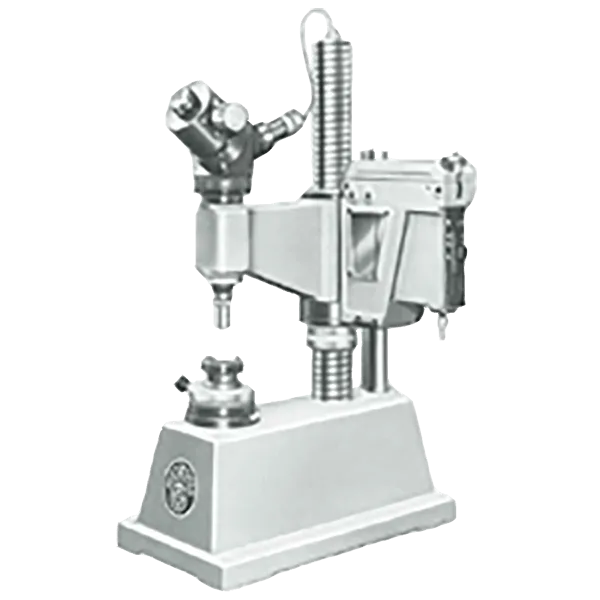

BRIVISOR KL2 - KL3
- Vickers & Knoop Hardness Tester
- Microscope with interchangeable lenses
- Low-mass spring load
- Today’s Tester: VH1202 & VH3100
BRIRO BEH & BRIVISKOP 3000
- Universal Hardness Tester, depth measurement
- BRIVISKOP: Vickers & Brinell
- BRIRO: Rockwell
BRIRO E
- Rockwell Hardness Tester
- Simple test procedures
- Today’s Tester: VH3100
BRIRO VA AUTOMAT
- Automatic Rockwell Hardness Tester
- Original Reicherter Clamping
- 50-100 kgf, 62.5-187.5 kgf, 100-250 kgf
BRIRO VA
- Universal Hardness Tester
- Brinell and Vickers
- Spring Loaded
KL4
- Fullautomatic Vickers Tester
- Loadrange 0.05 – 10kgf
- WinControl Software
- Can be upgraded with DiaMet software (only digital KL4)
- Current tester: VH3100
BRIRO R
- Heavy duty Rockwell tester
- Springload force application
- Original Reicherter clamping
- Current tester: R574
Wilson UH250 Universal Hardness Tester (2010-2018)
- Closed loop Universal Hardness Tester 1-250kgf
- Vickers, Brinell, Rockwell
- Operated with WinControl and DiaMet software
- Reicherter Clamping Device
PRECIDUR Hardness Testing Software
